Milan Square Concealed Triple Shower Valve with Fixed Head & 4 Body Jets – Chrome
Milan Square Concealed Thermostatic Triple Shower Valve with Square Fixed Head & 4 Body Jets Chrome
The Milan range brings substantial elegance to the modern bathroom. The triple shower valve enables you to select body jets for a quick freshen up or for a real drenching. Separate controls for temperature and flow. Operates two shower accessories separately or simultaneously: fixed head & slide rail kit, fixed head & body jets or slide rail kit & body jets.
- Estimated Delivery : 4 to 6 days
- Free Shipping & Returns : On all orders over £499

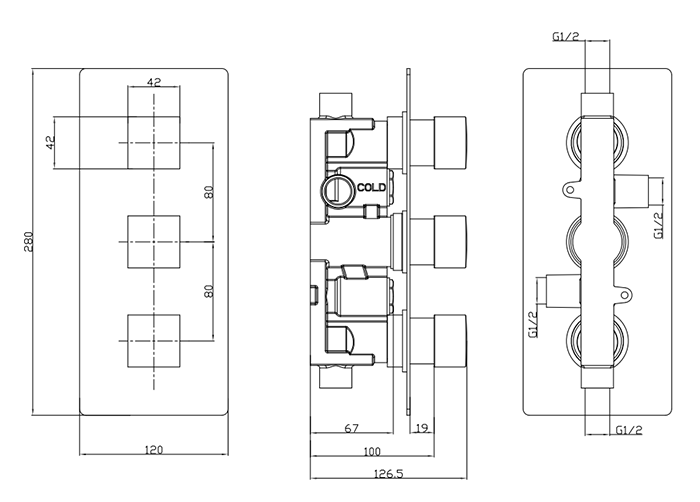

Shower Valve Details
- Width: 120mm
- Depth: 126mm
- Height: 280mm
- High Quality Design
- Finish: Polished Chrome
- Brass Internals
- Thermostatically controlled
- Valve Handles: Square
- Rectangular Backplate
- Outlets: 2
- Style: Modern
- Operates two points separately or simultaneously
- Water Pressure: 0.5 bar to 5 bar
- Suitable for modern pressurised plumbing systems.
- Can be fitted vertically or horizontally
- Hot water temperature 55 to 85 Degrees
- The shower valve will not work efficiently on a gravity fed tank system unless a correct booster pump is installed.
- Should a pump be required we recommend a universal or negative head pump
Fixed Square Shower Head with Wall Mounted Arm Details
- Shower head dimensions: 200 x 200mm
- Shower arm length: 354mm
- Style: Modern
- Shape: Square
- Colour/Finish: Chrome
- Pressure requirement 0.5 bar minimum
- Supplied with swivel joint and wall mounted square arm.
- Rub clean nozzles makes this item easy to clean and maintain
- Please note: Shower head chrome plated plastic, not metal.
- Installation of the arm requires rear access behind the wall.
Body Jet Details
- Overall Size: D60 x W50 x H50mm approx.
- Shroud: H50 x W50mm
- Brass 1/2 inch BSP thread: 25mm long
- 16 rubber nozzles
- Colour/Finishes: Polished Chrome
- Material: Brass
- Product Type: Slim Square Body Jet
- Supplied with swivel joint
- Silicone nozzles mean that any limescale deposits can simply be rubbed away
Pictures for illustrative purposes only.
All measurements are approximate
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
Shower head and arm guaranteed for 2 years.
Comprises
(1) 200 x 200mm Square Head – Chrome
(1) Square Shower Arm – Chrome
(1) Triple Concealed Thermostatic Shower Valve – Chrome
(4) Square Body Jets – Chrome
Gravity Fed Systems:
If you live in an older property, there’s a good chance you have a low-pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
