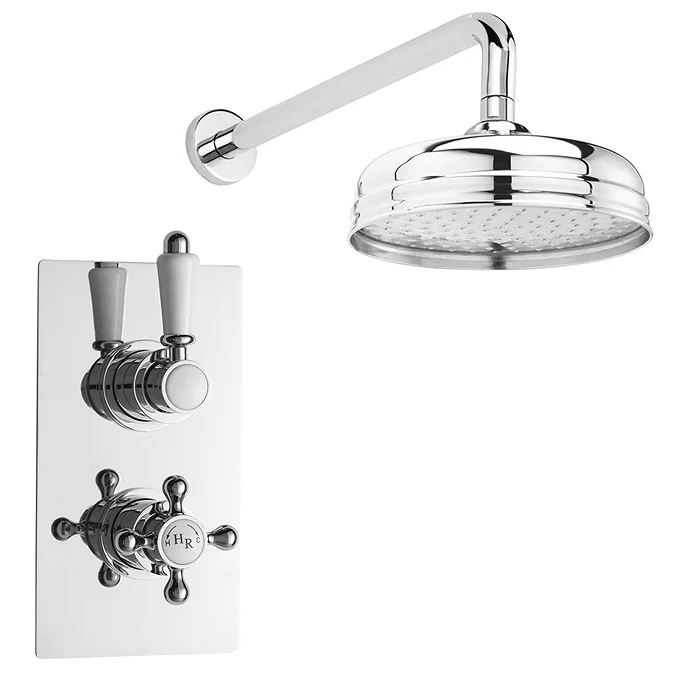

Trafalgar Traditional Concealed Individual Diverter + Thermostatic Control Valve with Handset + 8″ Shower Head
Trafalgar Traditional Concealed Individual Diverter + Thermostatic Control Valve with Handset and 8″ Shower Head in Chrome
The Trafalgar Concealed Individual Diverter + Thermostatic Control Shower Valve Pack exudes timeless elegance with its Edwardian-style beveled backplate, complemented by luxurious crosshead and lever handles. This traditional-style shower valve pack is designed for concealed installation, and it includes an 8-inch wall-mounted fixed shower head and a classic shower handset.
- Estimated Delivery : 4 to 6 days
- Free Shipping & Returns : On all orders over £499
Shower Valve Details:

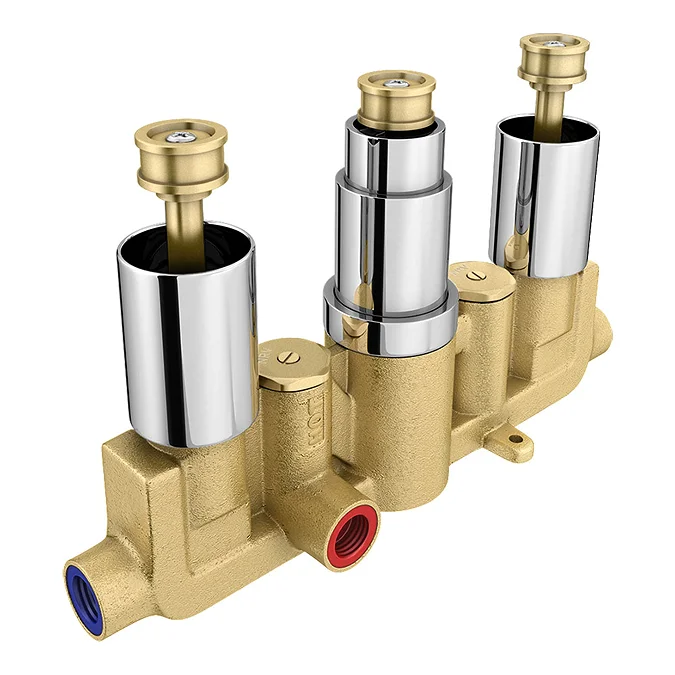

- Diverter Valve:

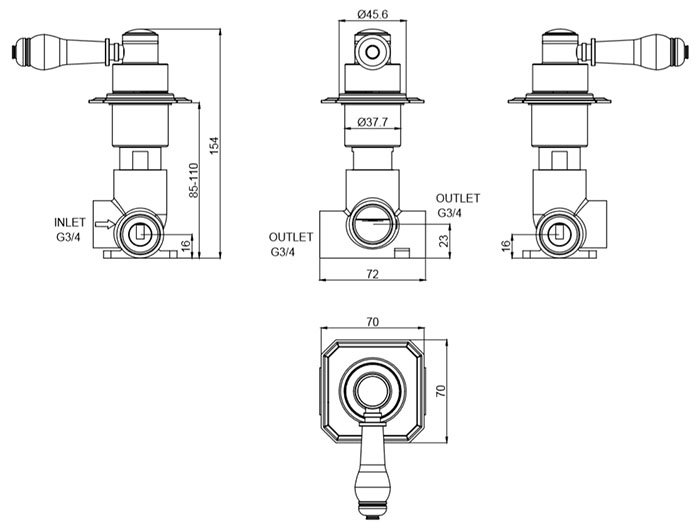

- Dimensions: Width 70mm x Height 70mm x Depth 154mm
- Function: Diverts water flow between two shower accessories
- Material: Brass internals with chrome-plated backplate
- Style: Traditional
- Suitable for use with 2 outlets
- Operating pressure range: 0.5 bar (minimum) to 5 bar (maximum)
- Hot water supply temperature: 55-85°C
- Cold water supply temperature: 4-29°C
- Compatible with modern pressurized plumbing systems
- Thermostatic Control:
- Dimensions: Width 70mm x Height 150mm x Depth 154mm
- Individual control for temperature adjustment
- Concealed fitting
- Traditional beveled backplates
- Includes both crosshead and lever handles
- Suitable for use with concealed shower valves

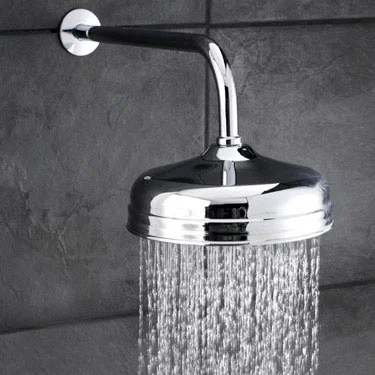

Shower Head Details:
- Diameter: 210mm
- Height: 100mm
- Shower arm length: 345mm
- Swivel ball joint for flexible positioning
- Style: Traditional
- Finish: Polished chrome
- Material: Brass internals
- Minimum pressure requirement: 0.5 bar
- Silicone nozzles for easy removal of limescale deposits
- Installation requires rear access behind the wall

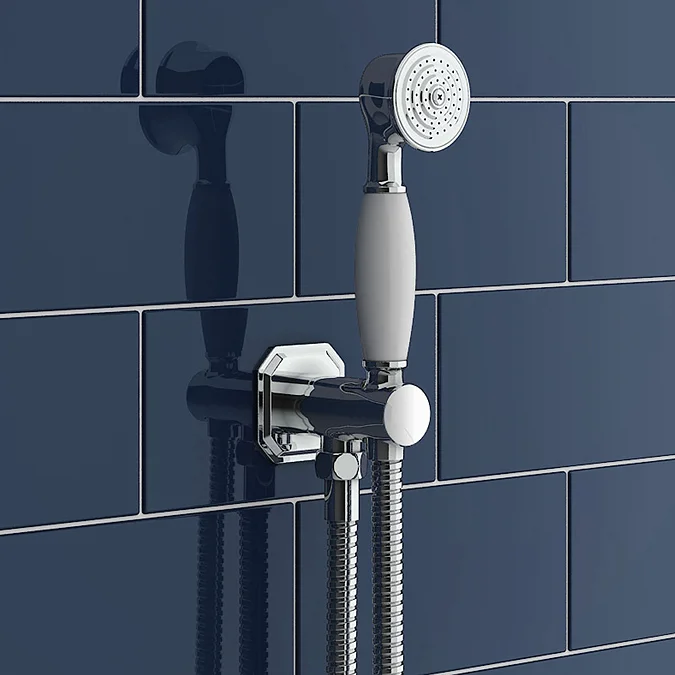

Shower Handset Details:
- Height: 216mm
- Width: 50mm
- Depth: 75mm
- Finish: Polished Chrome
- Material: Brass Internals
- Style: Traditional
- Connections: 1/2″ BSP (British Standard Pipe) connections
- Features: The outlet elbow discreetly conceals unsightly fittings, making it an ideal choice for use with concealed shower valves.
- Flexible Hose: The included 1.5m chrome flexible hose ensures flexibility and ease of use.
- Mounting: Designed for wall mounting.
- Water Pressure Compatibility: Suitable for water pressure systems of 0.2 bar and above.
- Installation Note: Rear access behind the wall is required for installation.
For further information refer to products installation instructions
Guarantee: 5 Year (1 Year on serviceable parts for example: internal components such as check valves and cartridges)
All images provided are for illustration purposes only, and the measurements are approximate.
Comprises:
(1) Trafalgar Concealed Individual Diverter + Thermostatic Control Shower Valve For 2 Outlets
(1) Belmont Traditional 8″ Apron Rose Shower Head
(1) Chrome 345mm Round Shower Arm
(1) Traditional Outlet Elbow with Parking Bracket, Flex & Handset
Gravity Fed Systems:
If you live in an older property there’s a good chance you have a low pressure gravity-fed system. This shower valve requires a minimum pressure of 0.5 bar therefore we recommend installing a negative or universal pump (sold separately). Please note: Positive pumps will not work.
